Understanding True Compressor Systems

True Manufacturing builds some of the most reliable commercial refrigeration in the foodservice industry, but their compressors still fail when conditions align against them. The typical True T-49 reach-in uses a hermetically sealed compressor that depends on three critical systems working together: proper electrical supply, functioning start components, and adequate thermal protection.

Most True units we service in Dallas run Tecumseh or Embraco compressors, both fractional horsepower hermetic designs rated for R-404A or the newer R-449A refrigerant. These compressors sit in the lower compartment, drawing return air across the condenser coils. When ambient temperatures hit 105°F in a non-air-conditioned kitchen, that design gets tested hard.

The compressor itself contains motor windings, internal overload protection, and moving parts submerged in refrigerant and oil. When you hear clicking but no compressor operation, the start components are attempting their job but something prevents the motor from energizing. When you hear nothing at all, the problem sits upstream in your control circuit or power supply.

Understanding this architecture matters because shotgun parts replacement costs your operation money and downtime. A systematic diagnostic approach identifies the actual failure point, whether that is a $15 relay or a $800 compressor replacement.

Electrical Diagnosis First Steps

Before you touch any compressor component, verify power at the unit. I have seen experienced kitchen managers overlook tripped breakers or pulled plugs during cleaning operations. Check your main service panel for the dedicated 20-amp circuit that feeds most single-door True units, or the 30-amp circuit for larger GDM-72 glass door merchandisers.

With power confirmed, move to the temperature controller. True units use either mechanical thermostats or digital controls depending on model year. On a T-49F freezer, the thermostat should show continuity between terminals when calling for cooling. A failed thermostat leaves the compressor circuit open, preventing any start attempt. Replace the thermostat if it shows no continuity with the dial turned to coldest setting.

Next, examine the door switch interlock if equipped. True specification models include safety switches that interrupt compressor operation when doors remain open beyond set timepoints. These switches develop contact problems after years of use, particularly in high-humidity Texas operations where condensation promotes corrosion.

Check voltage at the compressor terminal box with the thermostat calling for cooling. You should read 115V on single-phase units or 208-230V on three-phase models. Low voltage indicates problems in your building electrical system or inadequate wire gauge on long runs from the service panel. Compressors operating below 10% of rated voltage will trip overload protection without starting.

Relay and Overload Testing

The start relay and overload protector cause more no-start conditions than actual compressor failures. These components live in a hostile environment near the compressor, subject to vibration, heat, and electrical stress. On older True units, you will find a square potential relay mounted to the compressor terminals. Newer models use solid-state PTC (positive temperature coefficient) start devices.

A potential relay uses electromagnetic operation to energize the start winding during initial motor rotation. When the relay contacts fail to close, the compressor cannot develop starting torque. When contacts weld closed, the start winding remains energized and burns out within seconds. Testing requires removing the relay and checking contact continuity with the unit de-energized. Replace any relay showing pitted or burned contacts.

The overload protector serves as thermal protection for the motor windings. This bimetallic disc snaps open when sensing excessive amperage draw or high temperature, then resets after cooling. A failing overload trips prematurely, sometimes at normal operating current. In July and August, we replace dozens of these on True equipment across Dallas because the combination of hot kitchen ambient and marginal overloads finally tips the balance.

PTC start devices simplify the system but still fail. These ceramic resistors carry high current when cold, providing start assistance, then become high-resistance when heated by that current. A shorted PTC prevents starting; an open PTC might allow starting on an unloaded compressor but fails under normal refrigerant pressure. Resistance testing when cold should show 3-20 ohms depending on compressor size.

Thermal Shutdown Conditions

Texas heat kills more commercial refrigeration equipment than any other single factor. When your True compressor sits in a 110°F kitchen environment, the condenser cannot reject heat effectively. Condenser coils clogged with lint, grease, and dust make this worse. The compressor runs hotter, draws more amperage, and eventually the overload protector opens the circuit.

This creates the classic service call scenario: the compressor will not start even after sitting idle for 30 minutes. The overload has tripped and requires complete cooling before automatic reset. Some overloads need 60-90 minutes in extreme conditions. Frustrated operators keep cycling the thermostat, reheating the overload with each attempt, extending the lockout period.

Internal compressor overloads add another protection layer. These thermostats mount directly on the motor windings inside the hermetic shell. When winding temperature exceeds design limits (typically 275-300°F), this device opens regardless of external overload status. Recovery takes hours because the entire refrigerant charge and oil sump must cool below reset temperature.

Chronic thermal shutdowns indicate underlying problems that require correction. Clean the condenser coils thoroughly. Verify the condenser fan motor operates at correct RPM. Check refrigerant charge because undercharge makes the compressor work harder. Measure amp draw during operation because a compressor pulling 15 amps on a 10-amp rated system is announcing its pending failure. Address the root cause or you will replace failed compressors repeatedly.

Voltage and Phase Problems

Commercial buildings in the DFW area sometimes suffer voltage issues during peak summer demand. Your True refrigerator requires stable voltage within 10% of nameplate rating. A GDM-49 rated for 115V needs 104-126V for reliable operation. Below that range, the compressor motor cannot develop sufficient torque to start against refrigerant pressure.

We diagnose low-voltage conditions by measuring at the compressor terminals during attempted start. The voltage sag during motor startup reveals marginal electrical supply. A reading that drops from 118V to 92V during start indicates either undersized circuit wiring, poor connections, or inadequate transformer capacity feeding your building. This requires an electrician to upgrade the electrical service.

Three-phase units present additional complications. A True T-72 freezer running 208V three-phase depends on balanced voltage across all three legs. Phase imbalance exceeding 2% causes excessive motor heating and torque reduction. Single-phasing, where one leg fails completely, produces a distinctive humming as the motor attempts to run on two phases. This condition destroys compressor windings quickly.

Voltage problems also damage start components prematurely. Low voltage makes the potential relay chatter, burning contacts. High voltage (sometimes seen when utility transformers tap settings are incorrect) destroys start capacitors in units equipped with them. Always verify proper voltage before condemning other components. We have seen multiple unnecessary compressor replacements that simply needed electrical service correction.

When Compressor Replacement Needed

After eliminating electrical, relay, and control problems, actual compressor failure becomes the diagnosis. Testing compressor windings confirms this. With power disconnected and the relay removed, measure resistance between the three compressor terminals: common, start, and run. A functional compressor shows different resistance values between terminal pairs, typically 1-4 ohms between common-run, 3-10 ohms between common-start, and the sum of those readings between start-run.

Zero resistance between any terminals indicates shorted windings. Infinite resistance means open windings. Either condition requires replacement. Also check resistance from each terminal to the compressor shell ground. Any reading below infinite (typically shown as OL or open on digital meters) means winding-to-ground short, a catastrophic failure that often trips the building breaker or blows fuses.

Mechanical seizure represents another replacement scenario. A compressor that hums loudly but does not start may have seized internal components. This happens when lubrication fails, often after the unit sits unused for extended periods or when moisture contamination creates acid that attacks bearing surfaces. The motor draws locked-rotor amperage (5-8 times normal running current) until the overload trips.

When replacing a True compressor, proper refrigerant recovery and system cleanup matter enormously. Burned-out compressors contaminate the entire refrigeration circuit with acid and carbon. Install an oversized filter-drier, flush the system if contamination is severe, and pull a proper vacuum before charging with R-404A or the appropriate replacement refrigerant. We now install R-449A in many True units as the industry transitions away from high-GWP refrigerants. Cutting corners on compressor replacement creates comeback failures within months.

True Model-Specific Issues

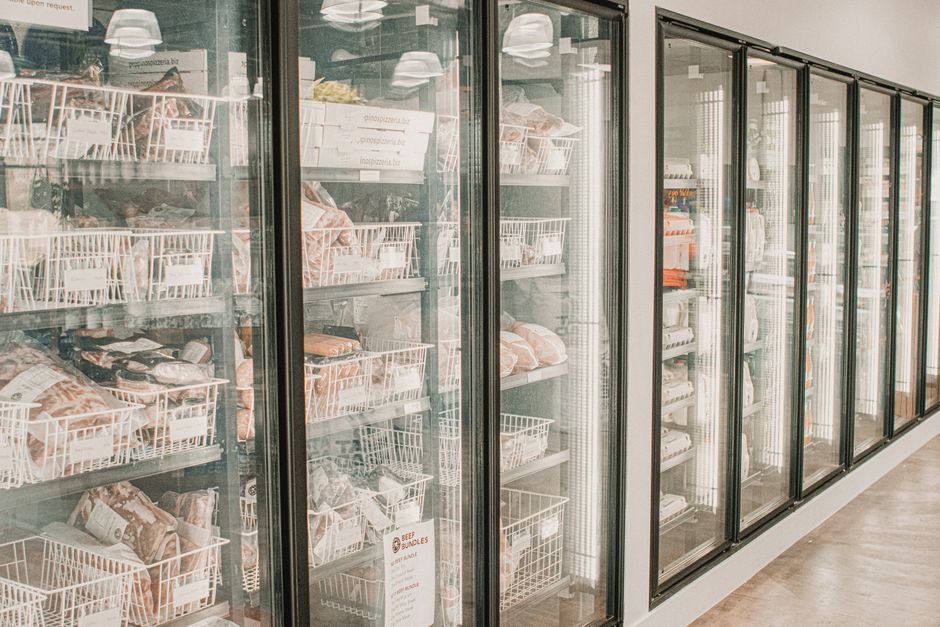

Different True model series present characteristic failure patterns we have identified over decades of service work. The GDM glass door merchandisers run harder than reach-ins because they constantly battle the radiant heat from front glass exposure and customer door openings. These units particularly suffer compressor issues when placed in direct sunlight from storefront windows, a common Dallas convenience store configuration.

True T-Series reach-ins (T-23, T-49, T-72) typically show better compressor longevity because they operate in more stable environments. However, the bottom-mount compressor location makes them vulnerable to water damage during floor cleaning or plumbing leaks. We have diagnosed multiple compressor failures traced to water intrusion in the electrical box, corroding relay connections and creating ground faults.

True worktop refrigerators (TWT series) pack compressors into extremely tight spaces with limited airflow. These units require scrupulous condenser maintenance because even minor dust accumulation chokes the small condenser coil. Kitchen operations that use these workstations for breading or flour work see accelerated condenser fouling. The compressors overheat and fail prematurely without monthly coil cleaning.

The True TAC forced-air Air Curtain Merchandisers represent the most demanding application. These open-front display cases rely on refrigerated air curtains to maintain product temperature. Any interruption in compressor operation causes rapid temperature rise and product loss. These units run nearly continuous duty cycles in Texas retail environments, wearing compressors and start components faster than closed-case equipment. We recommend proactive relay and overload replacement every 24 months on TAC units rather than waiting for failure.
